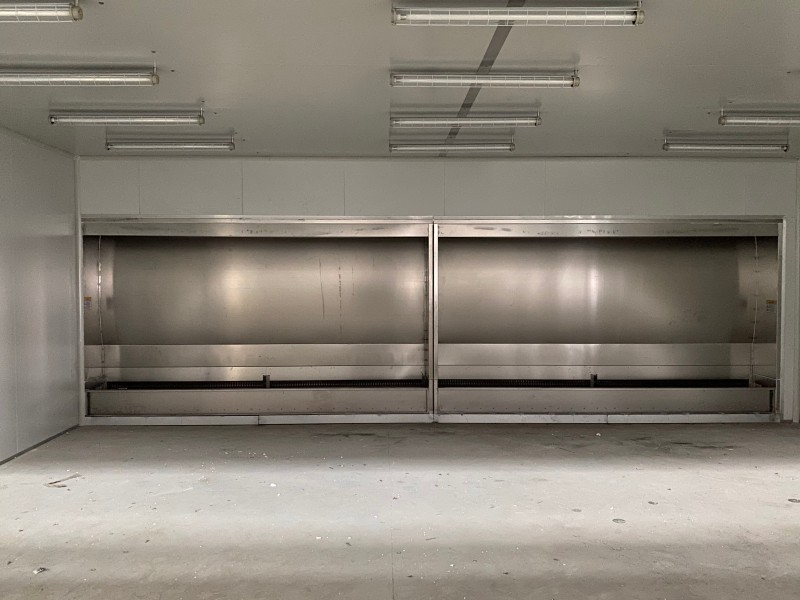

Furniture Spray Painting Booth (Water Curtain Type)

Furniture spray painting requires effective control of paint overspray, stable airflow and suitable exhaust treatment. During the application of primers, lacquers and topcoats, airborne paint droplets can accumulate around the spraying area, increase cleaning requirements and affect the surrounding production environment.

A furniture water curtain spray booth uses a flowing water curtain to capture paint overspray from the spray booth airflow. The collected paint residues are transferred into the water system, where they can be managed through an appropriate circulation, separation and sludge-handling arrangement.

LUFMAX provides water curtain spray booth solutions for furniture manufacturers, cabinet producers and woodworking finishing facilities. The system configuration can be evaluated according to the workpiece dimensions, coating materials, overspray volume, production schedule and exhaust treatment requirements.

For furniture plants handling continuous or relatively high-volume spraying, a properly designed wet filtration system can support organized overspray collection and reduce the accumulation of paint residues on booth surfaces and exhaust components.

The Industry Challenge:

In large-scale continuous manufacturing, high-intensity spraying leads to rapid filter saturation, where frequent filter changes halt the entire production line. Furthermore, fluctuations in ambient temperature and humidity directly impact the quality of the finish, while high-energy curing processes place a heavy financial burden on factory overhead.

The LUFMAX Solution:

 LUFMAX offers an advanced Water Curtain (Water Wash) system designed for 24/7 industrial durability. A constant, uniform water curtain instantly traps overspray, while an intelligent air circulation system automatically switches between fresh air intake, exhaust, and thermal curing modes to maintain perfect spraying conditions. To optimize energy efficiency, our curing systems are compatible with multiple energy sources, including Electric, Natural Gas, LPG, or Diesel, allowing you to choose the most cost-effective option. This system not only ensures a flawless lacquer finish but also maximizes production throughput and environmental compliance.

How a Furniture Water Curtain Spray Booth Works

1. Controlled Airflow Around the Spraying Area

The booth ventilation system directs airflow through the spraying workspace and toward the overspray collection section. Properly designed airflow helps carry airborne paint droplets away from the workpiece and toward the water curtain.

Airflow direction and velocity should be selected according to the booth design, workpiece dimensions and spraying method.

2. Water Curtain Overspray Capture

A continuous water flow forms a curtain across the designated collection area. As overspray-laden air passes through or interacts with the wet collection zone, paint droplets are captured by the water system.

This wet collection method is particularly worth evaluating when the coating process generates substantial sticky paint residues that would otherwise accumulate on dry filters and surrounding surfaces.

Actual collection performance depends on the booth design, water flow, airflow distribution, coating characteristics and operating conditions.

3. Water Circulation and Paint Sludge Management

The water system collects paint residues and returns water through the designed circulation arrangement. Depending on the system configuration, paint sludge can be removed through suitable separation and cleaning procedures.

Water quality, paint compatibility, residue accumulation and sludge disposal requirements should be considered when establishing the operating and maintenance plan.

4. Exhaust Filtration and VOC Treatment

After primary wet overspray collection, the exhaust stream may require additional filtration or VOC treatment according to the coating formulation and applicable emission limits.

An activated carbon adsorption stage can be considered for compatible VOC streams. Other treatment technologies may be necessary depending on solvent composition, concentration, airflow and discharge requirements.

Water curtain filtration should not be treated as a complete solution for all gaseous pollutants. The final exhaust treatment system must be selected according to the actual emissions assessment.

Key Components of a Furniture Water Curtain Spray Booth

The actual component list depends on the selected booth configuration and the site's technical requirements.

Customized Water Curtain Spray Booths for Furniture Factories

LUFMAX can assess water curtain spray booth requirements according to the following project information.

These details help establish a suitable booth configuration, ventilation arrangement, water circulation system and exhaust treatment plan.

Discuss Your Furniture Spray Booth Project with LUFMAX

LUFMAX provides industrial water curtain spray booths for furniture finishing and other compatible coating applications. The equipment configuration can be evaluated according to workpiece dimensions, coating materials, production volume, workshop layout and exhaust treatment requirements.

Whether you are installing a new furniture painting area or upgrading an existing wet spray booth, LUFMAX can assess your application and help determine the appropriate collection, ventilation and water management arrangements.

Share your furniture dimensions, coating type, spraying method and production requirements to discuss a customized furniture water curtain spray booth solution.
