Industrial Water Wash Spray Booths & Water Curtain Paint Booths

High-Efficiency Water Wash Paint Booths — Integrated overspray scrubbing and smart curing systems for heavy-duty production.

Industry Applications:

Automotive & Auto Parts: Full vehicle repainting, automotive sheet metal spraying, and high-volume continuous painting of wheels and components.

Heavy Machinery & Equipment: High-strength anti-corrosion painting of large industrial components such as excavators, steel structures, and agricultural machinery.

Premium Woodworking & Cabinetry: Automated painting lines for high-end solid wood furniture, pianos, and other products requiring extremely high surface cleanliness.

Aerospace & Rail Transit: Precision spraying of vehicle components and aircraft parts.

Inquire Now Next Product

Product Introduction

Engineered for medium-to-large-scale continuous production, our water wash spray booths provide a heavy-duty, highly sustainable, and turnkey solution for paint emission management. The system generates a perfectly balanced laminar air curtain around the painting workstation, instantly drawing overspray into the high-velocity water scrubbing zone. Combining specialized wet filtration with secondary carbon media, this water curtain paint booth excels in trapping sticky paint residues and stripping volatile fumes under high-volume, non-stop manufacturing conditions.

What is the difference between a dry paint booth and a water wash spray booth?

Product Advantages

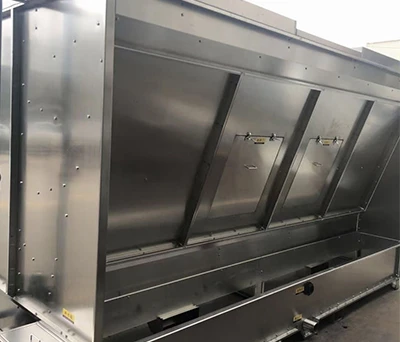

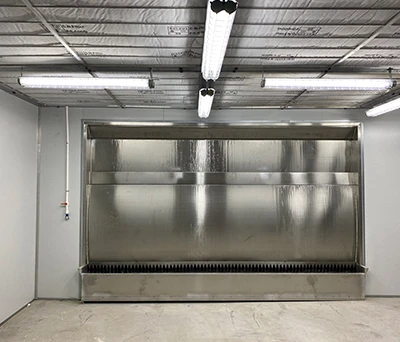

High-Volume Water Curtain Scrubbing for Maximum Cleanliness

Utilizing a continuous, high-velocity water wall, this wet paint booth washes airborne overspray out of the exhaust stream with unrivaled efficiency. The cascading water captures and encapsulates even the stickiest coatings, transforming loose mist into easily skimmed paint sludge. This completely prevents paint buildup in the ductwork and exhaust fans, ensuring sustained, maximum suction power over extended service intervals.
Smart Spray-to-Bake Recirculation & Multi-Energy Heating

Fully integrated with a smart automated control that seamless switches between fresh air intake, direct exhaust, and indoor air recirculation system during the paint baking / dry curing stage. To optimize your facility's utility expenses, the advanced heating plant supports a multi-energy heating source, including electricity, natural gas, LPG, and diesel fuel, radically minimizing thermal energy waste.

Product Additional Highlights & Features

Dual VOC Abatement & Eco Compliance

Following the primary water wash particulate scrubbing, the air smoothly routes through an integrated, high-capacity activated carbon cell. This targeted VOC abatement step effectively adsorbs solvent vapors (benzene series), guaranteeing that your emissions pass environmental audits.
Enclosed Safety Barrier & Premium Finish Quality

The balanced ventilation creates a uniform horizontal airflow that draws hazardous fumes directly away from the painter’s breathing zone. With multi-stage intake air filtration, it locks down the booth from cross-contamination and workshop dust, ensuring defect-free, mirror-like precision finishes.

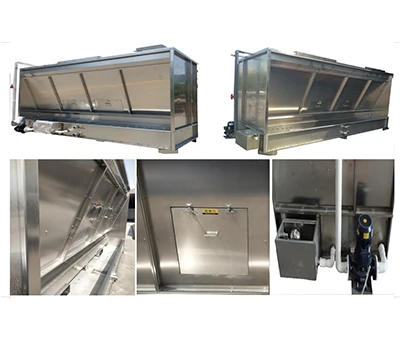

Heavy-Duty Corrosion-Resistant Build

The water tanks and internal skin are constructed from premium stainless steel or heavily treated galvanized materials to prevent rust in continuous humid environments. Centralized sludge collection and tool-free filter replacement loops mean lower routine maintenance overheads and decreased lifetime operating costs.

Parameters and Specifications

Length	Power	Air Volume
6000mm	8.8kW	40000m³/h
4000mm	6kW	25000m³/h
3000mm	4.4kW	20000m³/h
2500mm	2.2kW	7000m³/h
Remark: we accept customization.
